Fuel and Emissions Systems

System Descriptions (cont'd)

 11-479

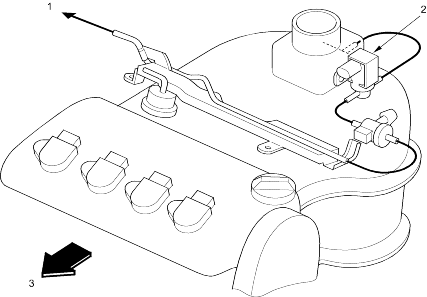

Vacuum Hose Routing

With TWC model

  1. To EVAPORATIVE EMISSION (EVAP) CANISTER
  2. EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE
  3. FRONT OF VEHICLE
