Fuel and Emissions Systems

System Descriptions (cont'd)

 11-214

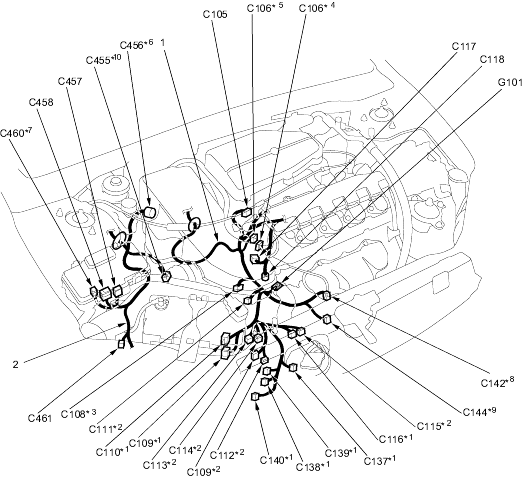

ECM/PCM Circuit Diagram (cont'd)

RHD model:

  1. ENGINE WIRE HARNESS
  2. ENGINE COMPARTMENT WIRE HARNESS

*1: A/T*2:CVT

*3: A/T and M/T

*4: D16W9 engine

*5:D15Y4, D17A2, D17A5 engines

*6: KU model

*7: D15Y4, D17A2 (KU model) engines

*8: With TWC model

*9: D15Y6 engine

*10: D15Y4, D17A2 (KU, KQ models), D17Z1 (KQ model) engines
