ECM/PCM Circuit Diagram (cont'd)

LHD model:

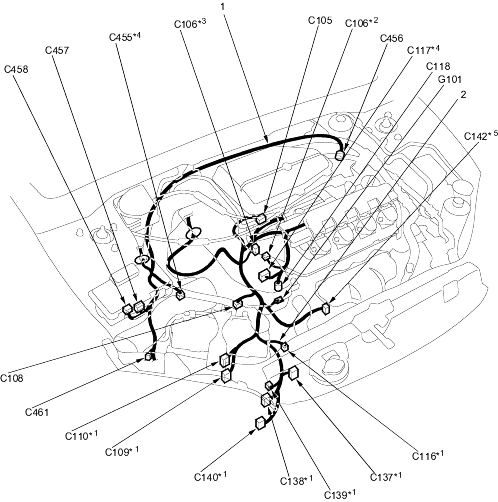

  1. ENGINE COMPARTMENT WIRE HARNESS
  2. ENGINE WIRE HARNESS

*1: A/T*2: D16W8, D16W9 engines

*3: D17A2, D17A5, D17Z3, D17Z4 engines

*4: D17A2 (KZ, FO models) engine

*5: with TWC model (except KV model)
