Fuel and Emissions Systems

System Descriptions (cont'd)

 11-15

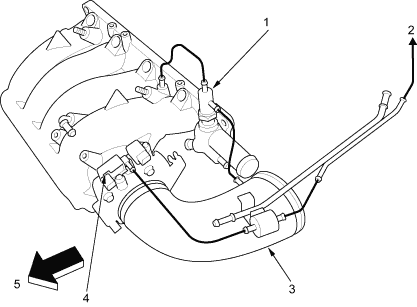

Vacuum Hose Routing
  1. INTAKE AIR BYPASS CONTROL THERMAL VALVE
  2. To EVAPORATIVE EMISSION (EVAP) CANISTER
  3. INTAKE AIR DUCT
  4. EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE
  5. FRONT OF VEHICLE
